Residential Solar PV Systems


We take systematic steps to reduce your electrical loads ,and then design the right system for your needs.

Solar PV for Residential

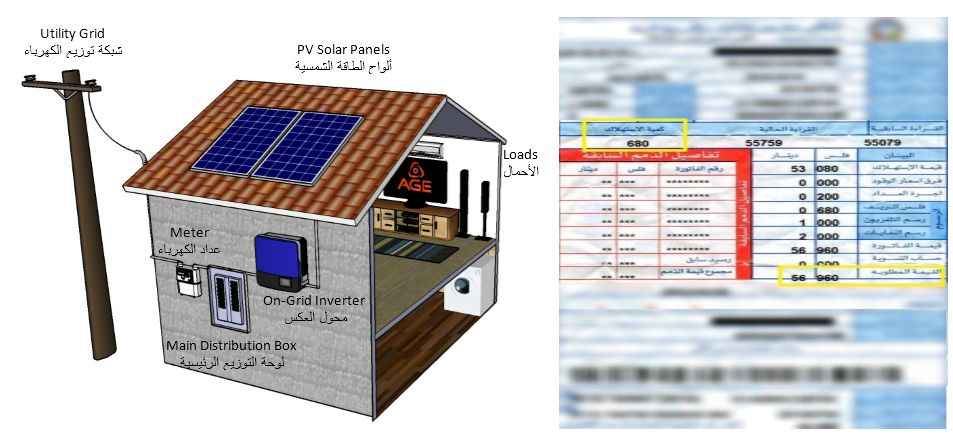

How Will a PV System Benifit You?

1

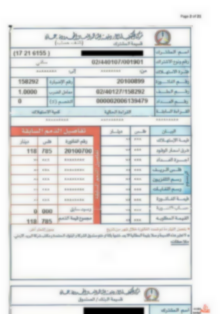

A Jordanian household whose monthly electrical bill comes to around 55 JOD per month, would be consuming around 680 kWh/month
If a 2kWp system is being installed, it will be generating around 275 kWh per month

2
So you will be consuming from the electrical utility 680-275 = 405 kWh/month , and that will be the value of your bill
With the system installed, the electrical bill will comes down and you will be paying 60% less each month, which would be 18 JOD for this example

3
At certain periods of time during the day, the power generated from the PV system might be more than the electrical loads
In this case, you will start selling back to the utility company at a rate of 12 fils per kWh/month. The utility company will settle your account generated by the PV annually.

*All Figures presented are strictly indicative, there are many factors to consider:Shadowing,system configuration,season and more.

† Figures are calculated based on tariff applied AFTER August 15,2013
  • Save money by using your own electricity
  • Provide up to 60% of your annual electricity requirement
  • Receive payments for any surplus energy you feed back into the Grid

Lets Get Started

What Is Next?

1
Contact Us
Provide the following information:
  • How much is your monthly consumption?
  • What appliances do you have and for how long do you operate them?
  • Location address
2
Meet AGE Energy
  • Meet AGE Energy staff
  • Get all your enquiries answered
  • Order your Solar PV system
3
Enjoy the Savings
  • Your system is professionally installed
  • Monitor your home power consumption and power Solar PV generation
  • Spread the word about the power of the sun and AGE Energy

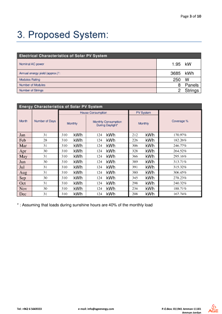

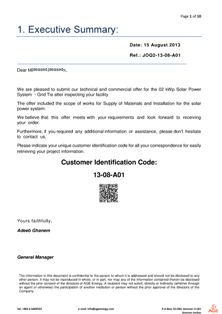

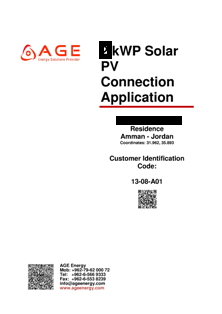

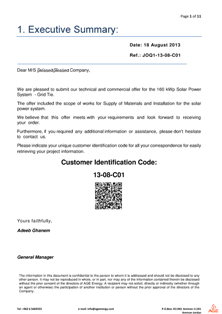

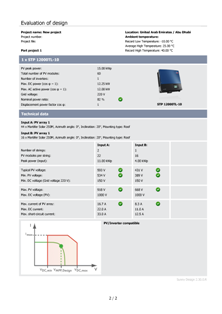

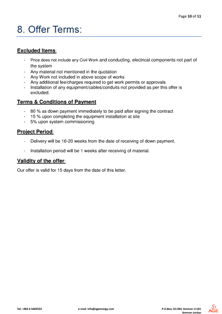

  • Residential Solar PV Offer

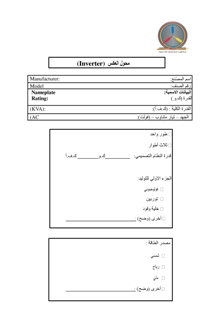

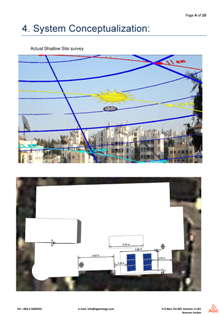

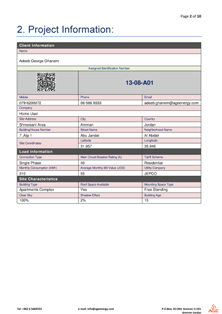

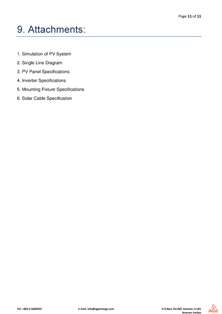

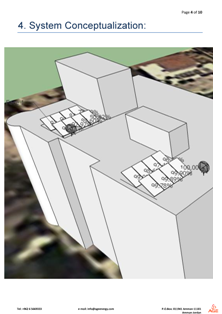

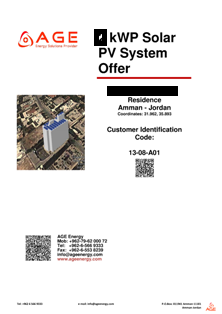

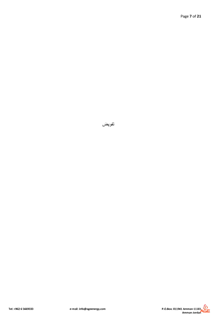

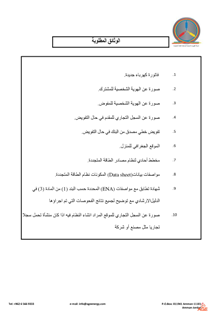

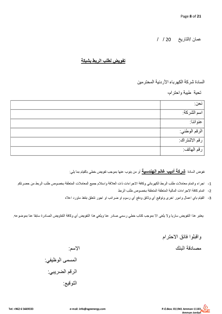

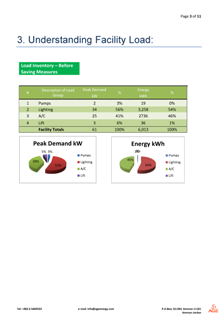

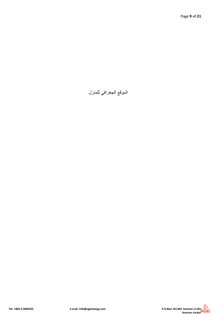

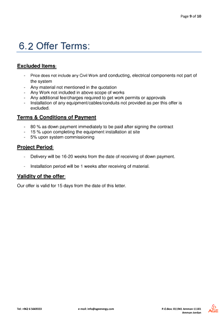

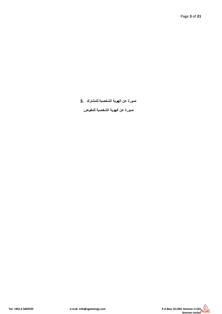

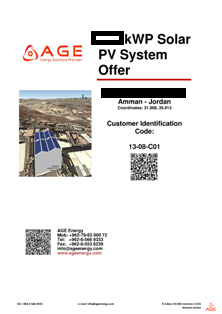

    Sample Copy

    AGE Energy Solar PV Offer

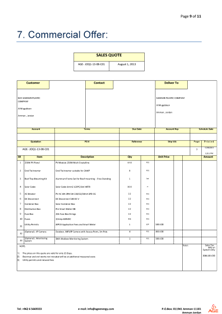

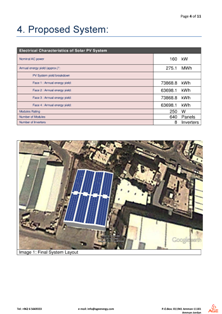

  • Commercial Solar PV Offer

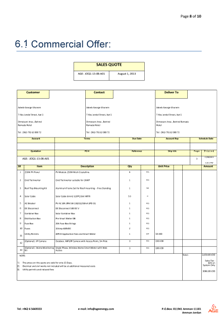

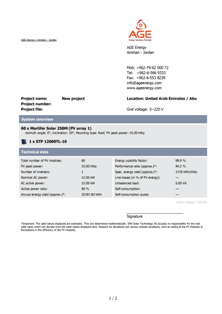

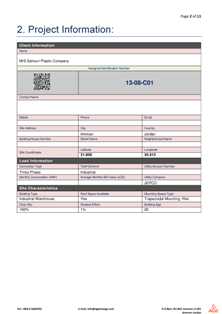

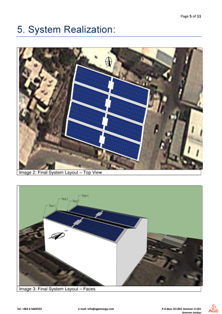

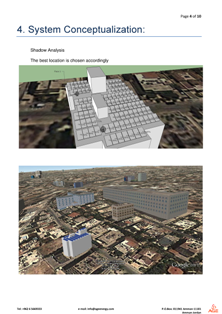

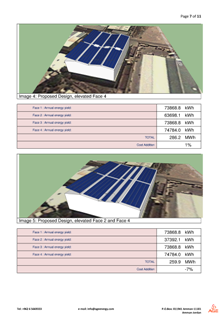

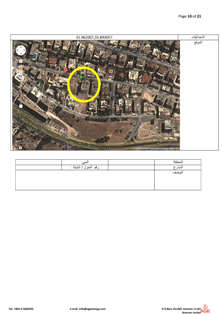

    Sample Copy

    AGE Energy Solar PV Offer

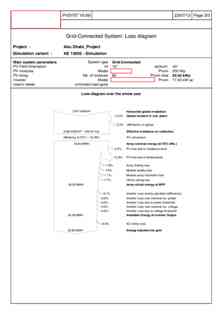

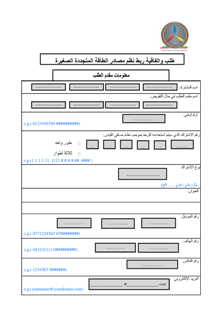

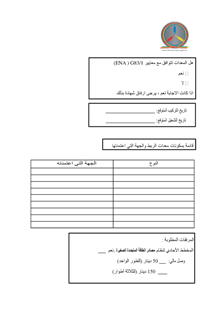

  • Utility Application

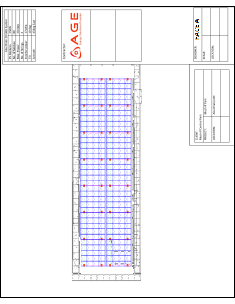

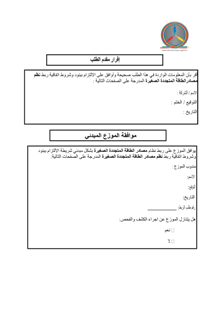

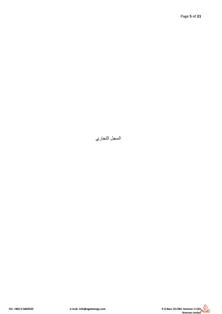

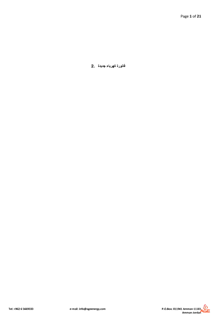

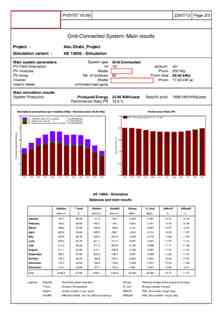

    Sample Copy

    AGE Energy Solar PV Offer

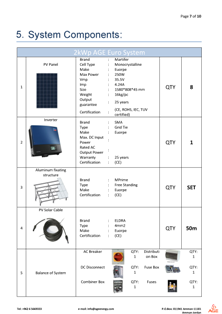

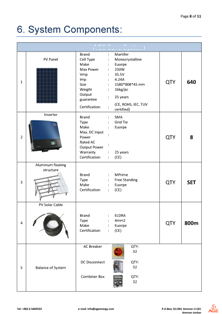

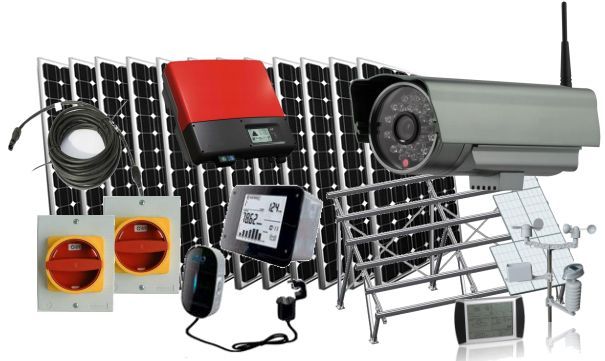

Systems Components

What Comes With The System?

# Item Name Image Features

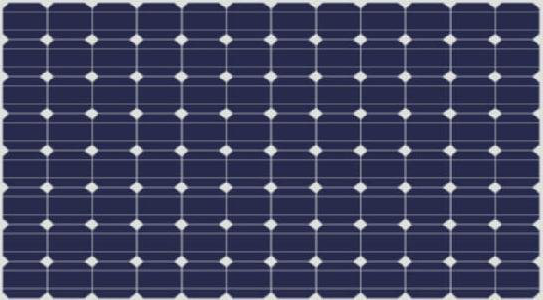

1 Solar PV Panel


▸The Top and Best Brands From Europe and China

▸Highest Certification Levels

▸ High PV Panel Efficiency

▸Extended Guaranteed Power And Performance Output

▸ High Efficiency and life performance incremented with the linear warranty

▸ High quality silicon material for long term output stability and reliability

▸ PV panels suitable for hail and snow climates during winter times in Jordan

▸ Suitable under extreme mechanical loading pressure

▸ High mechanical strength for easy installation

▸ Outstanding electrical performance under high temperature and low irradiance conditions

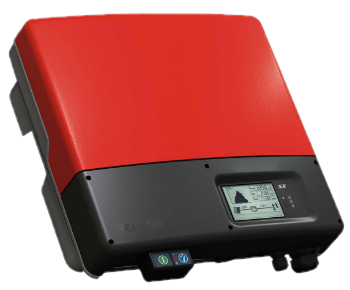

2 Solar PV Inverter


▸ Single and Three Phase grid connected inverters with battery backup option with automatic transfer switching

▸Highest Certification Levels and approved by JEPCO,IDECO and EDCO

▸ High efficiency and long service life

▸ Easy installation and low operating temperatures

▸ Web based management and control solutions

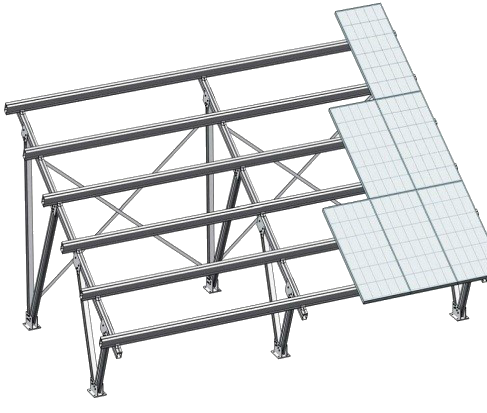

3 Mounting Structure


▸ High quality, branded and tested mounting solutions

▸ Wide Range of different mounting Structures types:

Free standing, pitched roof,tiles,ballast systems

▸ Customized solutions and easy installation

▸ Easy installation and low operating temperatures

▸ High Engineering specifications and Certifications

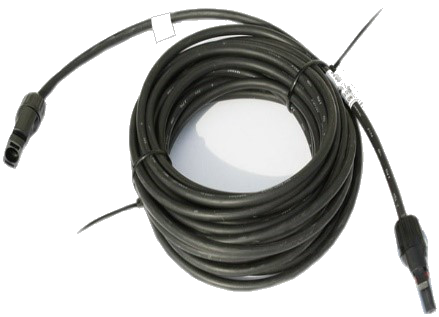

4 Solar Cable


▸ Electrical cable specifically made for Solar applications

▸ Outdoor durability: resists extreme temperatures

(-40°C to 120°C maximum at the core) and ozone resistant.

▸ Lifetime reliability: lasts up to 30 years even under tough external conditions

▸ Halogen free, double insulated suitable for outdoor use



* Solar cables are recommended where deemed suitable for the project, otherwise conventional cables are used
5 Electrical Components


▸ AC and DC Disconnects for circuit Isolation

▸ Cables managment componoents for a professional instllation

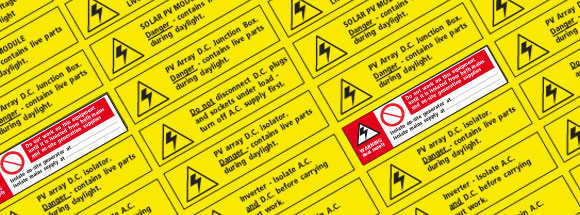

▸ Safety Labels and Indicators

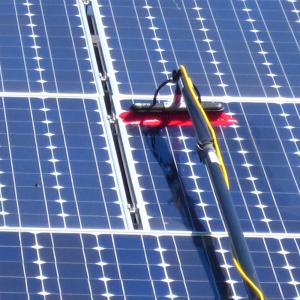

6 Cleaning Kit


▸ Kit and Tools Depend on System size,mounting Type

▸ In sunny but dusty climates such as Jordan,cleaning is required but not on a regular basis

7 IP Camera

(Optional Item)

▸ Track the sun location,clouds acculmation and dust accumlation

▸ Impress your visitors with live feed from the roof

▸ The IP Camera can be viewed from any part of the world, even through you mobile phone!

▸ Amazing night and day pictures

▸ No need for a DVR!

▸ Web based management and control

8 Monitoring Kit

(Optional Item)

▸ Access your home energy data anytime, from anywhere

▸ HEliminate bill shock, monitor your energy costs in real time

▸ View your daily, weekly, monthly or average costs in easy-to-read graphics

▸ Teach your family and visitors about energy use and saving

▸ Web based management and control solutions




Pick your System

Which solar system is right for me?



  • Example:2kW System

    Roof area required*

    Min 13m2

    Output*

    2.0 kW PV System

    Approx. 3,300 kWh Annually

    Mean. 275 kWh Monthly (Varies for each month)

    Money Annually Saved*

    2.0 kW PV System (assuming consumption of 680 kWh/Month)

    Bill will drop from 55 JOD per month to 20 JOD

    Saving: 35 JOD per month (60%)

    Optional : Live Video & Monitoring

    Outdoor IP Camera so you can view your system from anywhere in the world.
    Smart meter to monitor your home electrical consumption


    Use solar to help power*

    Lights, TV, DVD player, sound system, microwave, kettle, fridge, dishwasher, computer and washing machine.


  • Example: 3kW System

    Roof area required*

    Approx. 19m2

    Output*

    3.0 kW PV System

    Approx. 5,500 kWh Annually

    Mean. 458 kWh Monthly (Varies for each month)

    Money Annually Saved*

    3.0 kW PV System (assuming consumption of 680 kWh/Month)

    Bill will drop from 55 JOD per month to 6 JOD

    Saving: 49 JOD per month (90%)

    Optional : Live Video & Monitoring

    Outdoor IP Camera so you can view your system from anywhere in the world.
    Smart meter to monitor your home electrical consumption


    Use solar to help power*

    Lights, TV, DVD player, sound system, microwave, kettle, fridge, dishwasher, computer, washing machine and dryer.


  • Example: 4kW System

    Roof area required*

    Approx. 40m2

    Output*

    4.0 kW PV System

    Approx. 7,300 kWh Annually

    Mean. 608 kWh Monthly (Varies for each month)

    Money Annually Saved*

    4.0 kW PV System (assuming consumption of 850 kWh/Month)

    Bill will drop from 82 JOD per month to 12 JOD

    Saving: 70 JOD per month (85%)

    Optional : Live Video & Monitoring

    Outdoor IP Camera so you can view your system from anywhere in the world.
    smart meter to monitor your home electrical consumption


    Use solar to help power*

    Lights, TV, DVD player, sound system, microwave, kettle, fridge, dishwasher, computer, washing machine, dryer and standard use of air conditioning.

  • Larger Examples

    Roof area required

    Depending on System Size

    Output

    Virtually any system size can be set, depending on customer needs, consumption and local utility permission

    Examples of systems capacities:

    5.0 kW PV System

    Approx. 9,500 kWh Annually

    Approx. 792 kWh per month


    7.0 kW PV System

    Approx. 13,000 kWh Annually

    Approx. 1,083 kWh per month


    9.0 kW PV System

    Approx. 17,000 kWh Annually

    Approx. 1,416 kWh per month


    11.0 kW PV System

    Approx. 21,000 kWh Annually

    Approx. 1,750 kWh per month


    Optional :Live Video & Monitoring

    Outdoor IP Camera so you can view your system from anywhere in the world.
    Smart meter to monitor your home electrical consumption


  • 250W panels now available

    *All Figures presented are strictly indicative.
    AGE Energy solar consultant will discuss your household’s energy requirements when you call. Your solar system can only offset daytime electricity consumption. Solar generation depends on various factors including location, system size, time of year/day and light levels.

    † Custom systems are usually for three phase connection with high load capacities, System size depends on available area,load,and location.







    Web Enabled Camera

    AGE Energy takes things further, we offer the option of an IP Camera that can be viewed over Wifi or Ethernet to Monitor the Sun Path or the PV Plant. Any moment,any time, you can view things up at your roof, for added functionality, security and simplystanding out. The camera works in zero lighting enviroment,so at night you are at peace of mind. The camera can alerts you too if there are any movement near your system for added security.
